Entidades AutoCAD/Civil 3d no VLISP
Consulta rápida para entidades do civil e informações vinculadas.
-

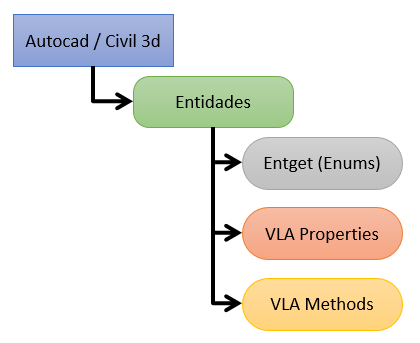

Civil 3D
-
COGO_POINT
-
Entget
- (-1 . <Entity name: 1c41ca59250>)
- (0 . "AECC_COGO_POINT")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "9840D")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbCogoPoint")
-
Entget
-
VLA Properties
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c474255060>
- Convergence (RO) = -0.000588627
- Description = "RN2"
- DescriptionFormat = ""
- DisplayName (RO) = Civil 3D API: Parâmetro incorreto.
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c44f1ea900>
- Easting = 555229.0
- Elevation = 19.338
- EntityTransparency = "ByLayer"
- FullDescription (RO) = "RN2"
- GridEasting = 555229.0
- GridNorthing = 9.57031e+06
- Handle (RO) = "98410"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44d6a1908>
- LabelRotation = 0.0
- LabelStyle = nil
- Latitude = -0.0678468
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Location = (555229.0 9.57031e+06 19.338)
- Longitude = -0.671996
- Material = "ByLayer"
- Name = ""
- Northing = 9.57031e+06
- Number = 111121
- ObjectID (RO) = 44
- ObjectName (RO) = "AeccDbCogoPoint"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- ProjectVersion (RO) = Civil 3D API: Parâmetro incorreto.
- RawDescription = "RN2"
- Rotation = 0.0
- Scale (RO) = 0.999638
- ShowToolTip = -1
- Style = nil
- StyleName (RO) = "<none>"
- SurveyPoint (RO) = 0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c44d696c50>
- Visible = -1
- XYScale = 1.0
- ZScale = 1.0
-
COGO_POINT
-
VLA Methods
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetUserDefinedPropertyValue (1)
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetUserDefinedPropertyValue (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efe9a0>)
- (0 . "AECC_FEATURE_LINE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99912")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbFeature")
- (100 . "AeccDbFeatureLine")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c453fc9270>
- Description = ""
- DisplayName (RO) = ""
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c468389820>
- ElevationPointsCount (RO) = 0
- EntityTransparency = "ByLayer"
- Handle (RO) = "99912"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c46ccd0d78>
- IsEditable (RO) = -1
- Layer = "0"
- Length2D (RO) = 61.6681
- Length3D (RO) = 61.6868
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- MaxElevation (RO) = 27.5057
- MaxGrade (RO) = 0.0245932
- MiniElevation (RO) = 25.989
- MiniGrade (RO) = 0.0245932
- Name = ""
- ObjectID (RO) = 66
- ObjectName (RO) = "AeccDbFeatureLine"
- OwnerID (RO) = 45
- PIPointsCount (RO) = 3
- PlotStyleName = "ByLayer"
- PointsCount (RO) = 3
- ShowToolTip = -1
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c46cca6a70>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- DeleteFeaturePoint (1)
- Get2dDistanceAtPoint (1)
- Get2dDistanceBetweenPoints (2)
- GetBoundingBox (2)
- GetBulgeAtPoint (1)
- GetDeflectionAngleAtPoint (1)
- GetExtensionDictionary ()
- GetGradesAtPoint (3)
- GetPoints (1)
- GetSurfaceIntersectPoints (1)
- GetXData (3)
- Highlight (1)
- InsertFeaturePoint (2)
- InsertFeaturePoints (2)
- IntersectWith (2)
- IsGradeBreak (1)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- RaiseFeatureLine (1)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetBulgeAtPoint (2)
- SetElevationsFromOffsetSource (1)
- SetPointElevation (1)
- SetPointsElevation (1)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c41ca2c520>)
- (0 . "AECC_TIN_SURFACE")
- (5 . "96412")
- (102 . "{ACAD_XDICTIONARY")
- (360 . <Entity name: 1c41ca2c530>)
- (102 . "}")
- (330 . <Entity name: 1c418df79f0>)
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbSurface")
- (100 . "AeccDbSurfaceTin")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c44d24db40>
- Boundaries (RO) = #<VLA-OBJECT IAeccSurfaceBoundaries 000001c44d774c78>
- Breaklines (RO) = #<VLA-OBJECT IAeccSurfaceBreaklines 000001c44d775278>
- ContourLabelGroups (RO) = #<VLA-OBJECT IAeccSurfaceContourLabelGroups 000001c44d77ff70>
- Contours (RO) = #<VLA-OBJECT IAeccSurfaceContours 000001c44d786df8>
- DefinitionProperties (RO) = #<VLA-OBJECT IAeccTinSurfaceDefinitionProperties 000001c429369890>
- DEMFiles (RO) = #<VLA-OBJECT IAeccSurfaceDEMFiles 000001c44d78a378>
- Description = "Description"
- DisplayName (RO) = "TOP_terreno natural"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c449f71f10>
- EntityTransparency = "ByLayer"
- Handle (RO) = "96412"
- HasExtensionDictionary (RO) = -1
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c449da4078>
- Labels (RO) = #<VLA-OBJECT IAeccSurfaceLabels 000001c44dc63560>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "TOP_terreno natural"
- ObjectID (RO) = 50
- ObjectName (RO) = "AeccDbSurfaceTin"
- OutputTriangles (RO) = (554822.0 9.57029e+06 25.398 554819.0 9.57028e+06 25.172 ... )
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- PointFiles (RO) = #<VLA-OBJECT IAeccSurfacePointFiles 000001c44dc5f068>
- PointGroups (RO) = #<VLA-OBJECT IAeccSurfacePointGroups 000001c44ecb51e8>
- Points (RO) = (554819.0 9.57028e+06 25.172 554819.0 9.57029e+06 25.532 ... )
- ShowToolTip = -1
- Statistics (RO) = #<VLA-OBJECT IAeccTinSurfaceStatistics 000001c42935ed30>
- Style = #<VLA-OBJECT IAeccSurfaceStyle 000001c44da3e250>
- StyleName (RO) = "Border Only"
- SurfaceAnalysis (RO) = #<VLA-OBJECT IAeccSurfaceAnalysis 000001c429362e70>
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c449d92340>
- Type (RO) = 2
- Visible = -1
- AddPointMultiple (1)
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- CreateSnapshot ()
- Delete ()
- ExtractBorder (1)
- ExtractContour (4)
- FindElevationAtXY (2)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectPointWithSurface (2)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- PasteSurface (1)
- Rebuild ()
- RebuildSnapshot ()
- RemoveSnapshot ()
- Rotate (2)
- Rotate3D (3)
- SampleElevations (4)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efe9c0>)
- (0 . "AECC_ALIGNMENT")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99914")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbFeature")
- (100 . "AeccDbAlignment")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c432635d60>
- Description = ""
- DesignSpeedBased = 0
- DesignSpeeds (RO) = #<VLA-OBJECT IAeccDesignSpeeds 000001c4205cfca0>
- DisplayName (RO) = "rua 2"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c4388224b0>
- EndingStation (RO) = 337.852
- Entities (RO) = #<VLA-OBJECT IAeccAlignmentEntities 000001c4531c8ce0>
- EntityTransparency = "ByLayer"
- Handle (RO) = "99914"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c4205e10d8>
- InstantaneousRadius (RO) = ...Indexed contents not shown...
- LabelGroups (RO) = #<VLA-OBJECT IAeccAlignmentLabelGroups 000001c42d1397f0>
- Labels (RO) = #<VLA-OBJECT IAeccAlignmentLabels 000001c467aa7c10>
- LabelSet (RO) = #<VLA-OBJECT IAeccAlignmentLabelSet 000001c44e209f00>
- Layer = "0"
- Length (RO) = 337.852
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "rua 2"
- ObjectID (RO) = 69
- ObjectName (RO) = "AeccDbAlignment"
- OwnerID (RO) = 45
- Parent (RO) = Civil 3D API: Parâmetro incorreto.
- PlotStyleName = "ByLayer"
- Profiles (RO) = #<VLA-OBJECT IAeccProfiles 000001c44fae58b0>
- ProfileViews (RO) = #<VLA-OBJECT IAeccProfileViews 000001c452254698>
- ReferencePoint = (554546.0 9.57056e+06 0.0)
- ReferencePointStation = 0.0
- SampleLineGroups (RO) = #<VLA-OBJECT IAeccSampleLineGroups 000001c452261908>
- ShowToolTip = -1
- StartingStation (RO) = 0.0
- StationEquations (RO) = #<VLA-OBJECT IAeccStationEquations 000001c4494aba00>
- StationIndexIncrement = 20.0
- Style = #<VLA-OBJECT IAeccAlignmentStyle 000001c45397ac70>
- StyleName (RO) = "Alinhamento_Style"
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c4494b8870>
- UseDesignCheckSet = 0
- UseDesignCriteriaFile = 0
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- DistanceToAlignment (5)
- ExportLabelSet (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetLWPolyline ()
- GetStations (3)
- GetStationStringWithEquations (1)
- GetXData (3)
- Highlight (1)
- ImportLabelSet (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- MoveToSiteless ()
- Offset (1)
- PointLocation (4)
- PointLocationEx (6)
- Reverse ()
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- StationOffset (4)
- StationOffsetEx (5)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c44df2d9b0>)
- (0 . "AECC_PROFILE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "98B03")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbFeature")
- (100 . "AeccDbVAlignment")
- Alignment (RO) = #<VLA-OBJECT IAeccAlignment 000001c44bb0ff30>
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c44be8daa0>
- Description = ""
- DesignSpeedBased = 0
- DisplayName (RO) = "GREIDE - 5"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c431f54820>
- Dynamic = 0
- ElevationMax (RO) = 30.0
- ElevationMin (RO) = 15.7862
- EndingStation (RO) = 706.776
- Entities (RO) = #<VLA-OBJECT IAeccProfileEntities 000001c44be91400>
- EntityTransparency = "ByLayer"
- Handle (RO) = "98B03"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c45293e498>
- IsReverseStationing (RO) = 0
- Layer = "0"
- Length (RO) = 706.776
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "GREIDE - 5"
- ObjectID (RO) = 56
- ObjectName (RO) = "AeccDbVAlignment"
- Offset = 0.0
- OwnerID (RO) = 45
- Plinegen = -1
- PlotStyleName = "ByLayer"
- PVIs (RO) = #<VLA-OBJECT IAeccProfilePVIs 000001c451a57a50>
- SampledEndingStation (RO) = 0.0
- SampledStartingStation (RO) = 0.0
- ShowToolTip = -1
- StartingStation (RO) = 0.0
- Style = #<VLA-OBJECT IAeccProfileStyle 000001c44c41cd00>
- StyleName (RO) = "Greide_padrão"
- Surface (RO) = nil
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c438c68ec0>
- Type = 2
- UseDesignCheckSet = 0
- UseDesignCriteriaFile = 0
- Visible = -1
- WeedGradeFactor (RO) = 30.0
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- ElevationAt (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- InstantGrade (2)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- LabelGroups (1)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
- SampleElevations (4)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c41ca364e0>)
- (0 . "AECC_PROFILE_VIEW")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "96D96")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbGraph")
- (100 . "AeccDbGraphProfile")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c449ddf9c0>
- BandSet (RO) = #<VLA-OBJECT IAeccProfileViewBandSet 000001c44ecbcc68>
- Description = ""
- DisplayName (RO) = "Galeria 2"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c44ecbee80>
- ElevationLocked = 0
- ElevationMax = 33.0
- ElevationMin = 16.0
- EntityTransparency = "ByLayer"
- Handle (RO) = "96D96"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44b7d0b08>
- Labels (RO) = #<VLA-OBJECT IAeccProfileViewLabels 000001c44e3036e0>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "Galeria 2"
- ObjectID (RO) = 52
- ObjectName (RO) = "AeccDbGraphProfile"
- Overrides (RO) = #<VLA-OBJECT IAeccProfileOverrides 000001c44ecab778>
- OwnerID (RO) = 45
- Parent (RO) = #<VLA-OBJECT IAeccAlignment 000001c437f4d710>
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- StationEnd = 562.904
- StationLocked = 0
- StationStart = 0.0
- Style = #<VLA-OBJECT IAeccProfileViewStyle 000001c44d9963e0>
- StyleName (RO) = "Profile_View_Sty_IBI [limpo]"
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c435b50250>
- Type (RO) = 2
- VerticalScale = 10.0
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- FindStationAndElevationAtXY (5)
- FindXYAtStationAndElevation (5)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- IsValid ()
- Layout ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467d2ad10>)
- (0 . "AECC_ASSEMBLY")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99859")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbAssembly")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c43cee4940>
- CodeSetStyleName = "All Codes"
- Description = ""
- DisplayName (RO) = "VIA COMPARTILHADA"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c4682b16a0>
- EntityTransparency = "ByLayer"
- Handle (RO) = "99859"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44d3a8108>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "VIA COMPARTILHADA"
- ObjectID (RO) = 75
- ObjectName (RO) = "AeccDbAssembly"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- Position (RO) = #<VLA-OBJECT IAeccPoint3d 000001c4511a79e0>
- ShowToolTip = -1
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c435b3bdc0>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467d2acf0>)
- (0 . "AECC_SUBASSEMBLY")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99857")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "F-SC-SEC_TIPO")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbSubassembly")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c44c464e10>
- Assembly (RO) = #<VLA-OBJECT IAeccAssembly 000001c469e2c240>
- CodeSetStyleName = "All Codes"
- ContentLocation = ""
- DefaultLoopInLayoutMode = -1
- DefaultLoopOffsetInLayoutMode = -10.0
- Description = ""
- DisplayName (RO) = "PISTA_ESQ"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c451808630>
- DotNetAssemblyName = "C:\\ProgramData\\Autodesk\\C3D 2018\\enu\\C3DStockSubassemblies.dll"
- DotNetClassName = "Subassembly.LaneSuperelevationAOR"
- EntityTransparency = "ByLayer"
- GeometryGenerateMode = 2
- Handle (RO) = "99857"
- HasExtensionDictionary (RO) = 0
- HelpCommand = "HELP_HHWND_TOPIC"
- HelpData = "SA_LaneSuperelevationAOR"
- HelpFile = "WBH"
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c435b55088>
- IsConditionalSA = 0
- IsDynamic (RO) = -1
- Layer = "F-SC-SEC_TIPO"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Links = #<VLA-OBJECT IAeccRoadwayLinks 000001c44ecbc800>
- MacroName = Civil 3D API: Erro não especificado
- MacroProject = Civil 3D API: Erro não especificado
- Material = "ByLayer"
- Name = "PISTA_ESQ"
- ObjectID (RO) = 76
- ObjectName (RO) = "AeccDbSubassembly"
- OwnerID (RO) = 45
- ParamsBool = #<VLA-OBJECT 000001c44ecc2d10>
- ParamsDouble = #<VLA-OBJECT 000001c44ecc1a40>
- ParamsLong = #<VLA-OBJECT 000001c44ecc85e0>
- ParamsString = #<VLA-OBJECT 000001c44ecc6e40>
- PlotStyleName = "ByLayer"
- Points = #<VLA-OBJECT IAeccRoadwayPoints 000001c44ecae8e0>
- Position (RO) = #<VLA-OBJECT IAeccPoint3d 000001c44ecafde0>
- ResourceModule = "AeccStockSubassemblyScriptsRC.dll"
- Shapes = #<VLA-OBJECT IAeccRoadwayShapes 000001c46b749390>
- ShowToolTip = -1
- StyleName (RO) = Civil 3D API: Parâmetro incorreto.
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c42d478c80>
- UseEmbeddedProject = 0
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- EraseAllParams ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetResourceString (1)
- GetResourceStringEx (1)
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- Run ()
- RunMacro ()
- ScaleEntity (2)
- SetXData (2)
- ShowHelp ()
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467d2ad70>)
- (0 . "AECC_CORRIDOR")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "9985F")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbCorridor")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c42265cd20>
- Baselines (RO) = #<VLA-OBJECT IAeccBaselines 000001c42266f3e0>
- CodeSetStyleName = "All Codes"
- CorridorSurfaces (RO) = #<VLA-OBJECT IAeccCorridorSurfaces 000001c43206a080>
- Description = ""
- DisplayName (RO) = "Galeria 5"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c4518bdb40>
- EntityTransparency = "ByLayer"
- FeatureLineCodeInfos (RO) = #<VLA-OBJECT IAeccFeatureLineCodeInfos 000001c44c1991f0>
- Handle (RO) = "9985F"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c46b596aa8>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- MaximumTriangleSideLength = 0.0
- Name = "Galeria 5"
- ObjectID (RO) = 74
- ObjectName (RO) = "AeccDbCorridor"
- OutOfDate (RO) = 0
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- RebuildAutomatic = 0
- ShowToolTip = -1
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c46b5b00c0>
- Visible = -1
- AddBaseline (3)
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rebuild ()
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c43cda1e80>)
- (0 . "AECC_SAMPLE_LINE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "98790")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbSampleLine")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c438837080>
- Description = ""
- DisplayName (RO) = "0+710.87"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c44c55b4f0>
- EntityTransparency = "ByLayer"
- Handle (RO) = "98790"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c438984ed8>
- LabelStyle = Exceção
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- LockToStation = -1
- Material = "ByLayer"
- Name = "0+710.87"
- ObjectID (RO) = 53
- ObjectName (RO) = "AeccDbSampleLine"
- OwnerID (RO) = 45
- Parent (RO) = #<VLA-OBJECT IAeccSampleLineGroup 000001c44bb12230>
- PlotStyleName = "ByLayer"
- Sections (RO) = #<VLA-OBJECT IAeccSections 000001c451eeb438>
- SectionViews (RO) = #<VLA-OBJECT IAeccSectionViews 000001c451eec468>
- ShowToolTip = -1
- Station = 710.874
- Style = #<VLA-OBJECT IAeccSampleLineStyle 000001c44e4d4b40>
- StyleName (RO) = "PLANTA"
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c4389a89c0>
- Vertices (RO) = #<VLA-OBJECT IAeccSampleLineVertices 000001c43883b228>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 11b658edad0>)
- (0 . "AECC_SAMPLE_LINE_GROUP")
- (330 . <Entity name: 11b5535f9f0>)
- (5 . "986FD")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbSampleLineGroup")
- Application (RO) = #<VLA-OBJECT IAeccApplication 0000011b5bc8d860>
- DefaultLayer = "0"
- DefaultSampleLineLabelStyle = #<VLA-OBJECT IAeccLabelStyle 0000011b600494d0>
- DefaultSampleLineStyle = #<VLA-OBJECT IAeccSampleLineStyle 0000011b54f63110>
- Description = ""
- DisplayName (RO) = "SL Collection - 1"
- Document (RO) = #<VLA-OBJECT IAeccDocument 0000011b5bc8d920>
- EntityTransparency = "ByLayer"
- Handle (RO) = "986FD"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 0000011b698fa858>
- LabelGroups (RO) = #<VLA-OBJECT IAeccSampleLineLabelGroups 0000011b6b71a6e0>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "SL Collection - 1"
- ObjectID (RO) = 45
- ObjectName (RO) = "AeccDbSampleLineGroup"
- OwnerID (RO) = 44
- Parent (RO) = #<VLA-OBJECT IAeccAlignment 0000011b55062670>
- PlotStyleName = "ByLayer"
- SampledSurfaces (RO) = #<VLA-OBJECT IAeccSampledSurfaces 0000011b5bc8d3e8>
- SampleLines (RO) = #<VLA-OBJECT IAeccSampleLines 0000011b5bc8d2c8>
- ShowToolTip = -1
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 0000011b698fa610>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- CreateSectionsAtSampleLine (1)
- CreateSectionsAtSampleLines ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c44c502f10>)
- (0 . "AECC_GRAPH_SECTION_VIEW")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "989F1")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbGraph")
- (100 . "AeccDbGraphCrossSection")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c44a4811b0>
- BandSet (RO) = #<VLA-OBJECT IAeccSectionViewBandSet 000001c434751538>
- Description = ""
- DisplayName (RO) = "Galeria 5"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c434759e20>
- ElevationMax (RO) = 32.0
- ElevationMin (RO) = 22.0
- EntityTransparency = "ByLayer"
- Handle (RO) = "989F1"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44d395fe8>
- Layer = "0"
- LengthLeft (RO) = -8.68787
- LengthRight (RO) = 10.0
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "Galeria 5"
- ObjectID (RO) = 65
- ObjectName (RO) = "AeccDbGraphCrossSection"
- OffsetLeft (RO) = -8.68787
- OffsetRight (RO) = 10.0
- Overrides (RO) = #<VLA-OBJECT IAeccSectionOverrides 000001c44dd59b98>
- OwnerID (RO) = 45
- Parent (RO) = #<VLA-OBJECT IAeccSampleLine 000001c452669d10>
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- Style = #<VLA-OBJECT IAeccSectionViewStyle 000001c450ba7e40>
- StyleName (RO) = "SECAO_200"
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c44d37a6e0>
- Type (RO) = 4
- VerticalScale = 1.0
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- FindStationOffsetAndElevationAtXY (6)
- FindXYAtStationOffsetAndElevation (6)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- IsValid ()
- Layout ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c425854dd0>)
- (0 . "AECC_SECTION")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "9870D")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbSection")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c4678b6590>
- DataType = 0
- Description = ""
- DisplayName (RO) = "TOP_PEDRAS drenagem"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c452375e30>
- ElevationMax (RO) = 30.6473
- ElevationMin (RO) = 30.3517
- EntityTransparency = "ByLayer"
- Handle (RO) = "9870D"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c435bb2fe8>
- LabelGroups (RO) = ...Indexed contents not shown...
- Layer = "0"
- LengthLeft (RO) = -3.53436
- LengthRight (RO) = 3.94871
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Links (RO) = #<VLA-OBJECT IAeccSectionLinks 000001c4206b71e8>
- Material = "ByLayer"
- Name = "TOP_PEDRAS drenagem"
- ObjectID (RO) = 60
- ObjectName (RO) = "AeccDbSection"
- OwnerID (RO) = 45
- Parent (RO) = #<VLA-OBJECT IAeccSampleLine 000001c468445200>
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- StaticDynamic = 1
- Station (RO) = 60.0
- Style = #<VLA-OBJECT IAeccSectionStyle 000001c452564310>
- StyleName (RO) = "Existing Ground"
- Surface (RO) = #<VLA-OBJECT IAeccTinSurface 000001c468447500>
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c435325dc0>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- ElevationAt (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467d2adb0>)
- (0 . "AECC_SECTION_CORRIDOR")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99863")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbSection")
- (100 . "AeccDbSectionCorridor")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c4386cbcf0>
- Corridor = #<VLA-OBJECT IAeccCorridor 000001c45265d1a0>
- DataType = 2
- Description = ""
- DisplayName (RO) = "Galeria 5"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c450532d60>
- ElevationMax (RO) = 30.4123
- ElevationMin (RO) = 29.5126
- EntityTransparency = "ByLayer"
- Handle (RO) = "99863"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c4285ffd78>
- LabelGroups (RO) = ...Indexed contents not shown...
- Layer = "0"
- LengthLeft (RO) = -3.4894
- LengthRight (RO) = 10.0
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Links (RO) = #<VLA-OBJECT IAeccSectionLinks 000001c454009c08>
- Material = "ByLayer"
- Name = "Galeria 5"
- ObjectID (RO) = 63
- ObjectName (RO) = "AeccDbSectionCorridor"
- OwnerID (RO) = 45
- Parent (RO) = #<VLA-OBJECT IAeccSampleLine 000001c45265d3d0>
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- StaticDynamic = 1
- Station (RO) = 60.0
- Style = Civil 3D API: Não há suporte para esta interface
- StyleName (RO) = "Standard"
- Surface (RO) = nil
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c429b8d140>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- ElevationAt (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467d36bb0>)
- (0 . "AECC_QUANTITY_TAKEOFF_MATERIAL_SECTION")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "998BB")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbSection")
- (100 . "AeccDbMaterialSection")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c4677d2580>
- DataType = 5
- Description = ""
- DisplayName (RO) = "Material List - (1) - CORTE"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c44a157eb0>
- ElevationMax (RO) = 30.6473
- ElevationMin (RO) = 29.8426
- EntityTransparency = "ByLayer"
- Handle (RO) = "998BB"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c4494c8988>
- LabelGroups (RO) = ...Indexed contents not shown...
- Layer = "0"
- LengthLeft (RO) = -3.4894
- LengthRight (RO) = 3.94871
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Links (RO) = #<VLA-OBJECT IAeccSectionLinks 000001c46c800768>
- MappingName (RO) = "Material List - (1)"
- Material = "ByLayer"
- MaterialName (RO) = "CORTE"
- Name = "Material List - (1) - CORTE"
- ObjectID (RO) = 62
- ObjectName (RO) = "AeccDbMaterialSection"
- OwnerID (RO) = 45
- Parent (RO) = #<VLA-OBJECT IAeccSampleLine 000001c45265da60>
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- StaticDynamic = 1
- Station (RO) = 60.0
- Style = Civil 3D API: Não há suporte para esta interface
- StyleName (RO) = "ESCAVAÇÃO"
- Surface (RO) = nil
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c44d6907a0>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- ElevationAt (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c41ca3d700>)
- (0 . "AECC_CATCHMENT")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "96CA0")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbCatchmentArea")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c44c212520>
- Description = ""
- DisplayName (RO) = "A46"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c4513e8840>
- EntityTransparency = "ByLayer"
- Handle (RO) = "96CA0"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44d3a2d38>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "A46"
- ObjectID (RO) = 67
- ObjectName (RO) = "AeccDbCatchmentArea"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c46cca2db0>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c41ca3c1b0>)
- (0 . "AECC_STRUCTURE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "96A1B")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (347 . <Entity name: 1c418df7c60>)
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbNetworkPartBase")
- (100 . "AeccDbNetworkPart")
- (100 . "AeccDbStructure")
- Alignment = nil
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c46be85c80>
- AutomaticRimSurfaceAdjustment = 1
- BoundingShape (RO) = 2
- ConnectedPipe (RO) = ...Indexed contents not shown...
- ConnectedPipeNames (RO) = "L5.05"
- ConnectedPipesCount (RO) = 1
- Connectors (RO) = #<VLA-OBJECT IAeccConnectors 000001c46be86820>
- ControlSumpBy = 0
- Description = "Boca de lobo MF"
- DisplayName (RO) = "BL33"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c4683a4cc0>
- EntityTransparency = "ByLayer"
- Handle (RO) = "96A1B"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c46962eef8>
- InnerDiameter (RO) = ...Indexed contents not shown...
- InnerLength (RO) = ...Indexed contents not shown...
- InnerWidth (RO) = ...Indexed contents not shown...
- Labels (RO) = #<VLA-OBJECT IAeccStructureLabels 000001c42d04fe90>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "Global"
- Name = "BL33"
- ObjectID (RO) = 73
- ObjectName (RO) = "AeccDbStructure"
- OwnerID (RO) = 45
- ParamsBool (RO) = #<VLA-OBJECT 000001c4683864f0>
- ParamsDouble (RO) = #<VLA-OBJECT 000001c468386fe0>
- ParamsLong (RO) = #<VLA-OBJECT 000001c468388320>
- ParamsString (RO) = #<VLA-OBJECT 000001c468389b30>
- PartDataRecord = #<VLA-OBJECT IAeccPartDataRecord 000001c46be8dc60>
- PartFamily (RO) = #<VLA-OBJECT IAeccPartFamily 000001c451a81b20>
- PartSizeName (RO) = "BL simples"
- PartType (RO) = 102
- PipeCenterDepth (RO) = ...Indexed contents not shown...
- PipeInnerDiaOrWidth (RO) = ...Indexed contents not shown...
- PipeInvertDepth (RO) = ...Indexed contents not shown...
- PipeLowestBottomDepth (RO) = 1.245
- PipeOuterBottomDepth (RO) = ...Indexed contents not shown...
- PipeOuterTopDepth (RO) = ...Indexed contents not shown...
- PipeUpperTopDepth (RO) = 0.7
- PipeWallThickness (RO) = ...Indexed contents not shown...
- PlotStyleName = "ByLayer"
- Position (RO) = #<VLA-OBJECT IAeccPoint3d 000001c4683937d0>
- ProfileNetworkParts (RO) = #<VLA-OBJECT IAeccGraphProfileNetworkParts 000001c453d38bf0>
- RimElevation = 28.6746
- Rotation = 5.51496
- ShowToolTip = -1
- StructureDiameterOrWidth (RO) = 1.0
- StructureHeight (RO) = 1.448
- StructureInnerDiameterOrWidth (RO) = 0.7
- StructureInnerLength (RO) = 1.4
- StructureLength (RO) = 1.7
- Style = #<VLA-OBJECT IAeccStructureStyle 000001c44bbb0490>
- SumpDepth = 0.1
- SumpElevation = 27.3766
- Surface = #<VLA-OBJECT IAeccTinSurface 000001c45265d830>
- SurfaceAdjustmentValue = 0.0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c4389bf0a0>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- ConnectToPipe (2)
- Copy ()
- Delete ()
- Disconnect (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetNextPipeElevation ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsConnectedPipeFlowingIn (1)
- IsConnectedPipeFlowingOut (1)
- IsPointInsideStructureRegion (1)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- ResizeByPipeDepths ()
- ResizeJunctionStructureByRimAndSumpElevations (3)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetLocation (1)
- SetXData (2)
- SwapPartFamilyAndSize (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c41ca3c1f0>)
- (0 . "AECC_PIPE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "96A1F")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbNetworkPartBase")
- (100 . "AeccDbNetworkPart")
- (100 . "AeccDbPipe")
- Alignment = nil
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c46811e870>
- ClosestPointTo (RO) = ...Indexed contents not shown...
- Connectors (RO) = #<VLA-OBJECT IAeccConnectors 000001c468124cf0>
- Description = "Tubo PEAD Corrugado"
- DisplayName (RO) = "L5.05"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c44f0bf000>
- EGLDown = 0.0
- EGLUp = 0.0
- EndPoint (RO) = #<VLA-OBJECT 000001c44f0c5e40>
- EndStructure (RO) = #<VLA-OBJECT IAeccStructure 000001c452659460>
- EntityTransparency = "ByLayer"
- FlowDirection (RO) = 1
- FlowDirectionMethod = 1
- Handle (RO) = "96A1F"
- HasExtensionDictionary (RO) = 0
- HGLDown = 0.0
- HGLUp = 0.0
- HoldOnResize = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44b5a0c68>
- InnerDiameterOrWidth (RO) = 0.451
- InnerHeight (RO) = 0.451
- IsMaxCoverViolated (RO) = ...Indexed contents not shown...
- IsMinCoverViolated (RO) = ...Indexed contents not shown...
- Labels (RO) = #<VLA-OBJECT IAeccPipeLabels 000001c4350cab50>
- Layer = "0"
- Length2D (RO) = 4.35246
- Length3D (RO) = 4.35301
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- MaximumCover (RO) = 1.18925
- MinimumCover (RO) = 0.7
- Name = "L5.05"
- ObjectID (RO) = 72
- ObjectName (RO) = "AeccDbPipe"
- OuterDiameterOrWidth (RO) = 0.545
- OuterHeight (RO) = 0.545
- OwnerID (RO) = 45
- ParamsBool (RO) = #<VLA-OBJECT 000001c452261270>
- ParamsDouble (RO) = #<VLA-OBJECT 000001c452262930>
- ParamsLong (RO) = #<VLA-OBJECT 000001c4522628c0>
- ParamsString (RO) = #<VLA-OBJECT 000001c452262cb0>
- PartDataRecord = #<VLA-OBJECT IAeccPartDataRecord 000001c468120070>
- PartFamily (RO) = #<VLA-OBJECT IAeccPartFamily 000001c44bb9a8d0>
- PartSizeName (RO) = "450 mm PEAD corrugado"
- PartType (RO) = 10
- PlotStyleName = "ByLayer"
- PointAtParam (RO) = ...Indexed contents not shown...
- Position (RO) = #<VLA-OBJECT IAeccPoint3d 000001c452248840>
- ProfileNetworkParts (RO) = #<VLA-OBJECT IAeccGraphProfileNetworkParts 000001c44d92d0e0>
- Radius (RO) = 0.0
- ShowToolTip = -1
- Slope (RO) = 0.0159
- StartPoint (RO) = #<VLA-OBJECT 000001c452253270>
- StartStructure (RO) = #<VLA-OBJECT IAeccStructure 000001c45265a810>
- STMPipeMetadata = unsupported result type: 65
- Style = #<VLA-OBJECT IAeccPipeStyle 000001c44bbb10c0>
- SubEntityType (RO) = 0
- Surface = #<VLA-OBJECT IAeccTinSurface 000001c45265a180>
- SweptShape (RO) = 2
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c46961cc20>
- Visible = -1
- WallThickness (RO) = 0.047
- ArrayPolar (3)
- ArrayRectangular (6)
- ConnectToPipe (3)
- ConnectToStructure (2)
- Copy ()
- Delete ()
- Disconnect (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Project2dPointVertically (1)
- ResizeByInnerDiaOrWidth (3)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetStartAndEndPoints (2)
- SetXData (2)
- SwapPartFamilyAndSize (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c41ca445f0>)
- (0 . "AECC_GRAPH_PROFILE_NETWORK_PART")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "978BF")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGraphProfileNetworkPartBase")
- (100 . "AeccDbGraphProfileNetworkPart")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c44c140a00>
- Description = "Rectangular Junction Structure NF SI"
- DisplayName (RO) = "C09"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c4509b3070>
- EntityTransparency = "ByLayer"
- Handle (RO) = "978BF"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c4387dedd8>
- Labels (RO) = #<VLA-OBJECT IAeccPartProfileLabels 000001c44d807d80>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "C09"
- ObjectID (RO) = 55
- ObjectName (RO) = "AeccDbGraphProfileNetworkPart"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c43899bb50>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetModelNetworkPart ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c41ca36500>)
- (0 . "AECC_GRAPH_PROFILE_NETWORK_PART")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "96D98")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGraphProfileNetworkPartBase")
- (100 . "AeccDbGraphProfileNetworkPart")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c449deb300>
- Description = "Tubo PEAD Corrugado"
- DisplayName (RO) = "G2.1"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c4528bf620>
- EntityTransparency = "ByLayer"
- Handle (RO) = "96D98"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c43898ded8>
- Labels (RO) = #<VLA-OBJECT IAeccPartProfileLabels 000001c43504ece0>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "G2.1"
- ObjectID (RO) = 54
- ObjectName (RO) = "AeccDbGraphProfileNetworkPart"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c4389a62f0>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetModelNetworkPart ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c43cda1970>)
- (0 . "AECC_SECTION_PIPE_NETWORK")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "9873F")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AeccDbEntity")
- (100 . "AeccDbGeo_aec")
- (100 . "AeccDbGeo")
- (100 . "AeccDbSection")
- (100 . "AeccDbSectionPipeNetwork")
- Application (RO) = #<VLA-OBJECT IAeccApplication 000001c4678eb590>
- DataType = 4
- Description = ""
- DisplayName (RO) = "PEDRAS_drenagem"
- Document (RO) = #<VLA-OBJECT IAeccDocument 000001c44a146800>
- ElevationMax (RO) = 28.7505
- ElevationMin (RO) = 26.4885
- EntityTransparency = "ByLayer"
- Handle (RO) = "9873F"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44bc61508>
- LabelGroups (RO) = ...Indexed contents not shown...
- Layer = "0"
- LengthLeft (RO) = Civil 3D API: Parâmetro incorreto.
- LengthRight (RO) = Civil 3D API: Parâmetro incorreto.
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Links (RO) = #<VLA-OBJECT IAeccSectionLinks 000001c434052338>
- Material = "ByLayer"
- Name = "PEDRAS_drenagem"
- ObjectID (RO) = 64
- ObjectName (RO) = "AeccDbSectionPipeNetwork"
- OwnerID (RO) = 45
- Parent (RO) = #<VLA-OBJECT IAeccSampleLine 000001c45266e9a0>
- PlotStyleName = "ByLayer"
- ShowToolTip = -1
- StaticDynamic = 1
- Station (RO) = 301.409
- Style = Civil 3D API: Identificador inválido.
- StyleName (RO) = Civil 3D API: Parâmetro incorreto.
- Surface (RO) = Civil 3D API: Não há suporte para esta interface
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c435c03d50>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- ElevationAt (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- IsReferenceObject ()
- IsReferenceStale ()
- IsReferenceSubObject ()
- IsReferenceValid ()
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
MODELSPACE
-
Entget
- ----
-
Entget
-
VLA Properties
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff69aac51a8>
- BlockScaling = 0
- Comments = ""
- Count (RO) = 2023
- Document (RO) = #<VLA-OBJECT IAcadDocument 00000278f0380478>
- Explodable = -1
- Handle (RO) = "1F"
- HasExtensionDictionary (RO) = -1
- IsDynamicBlock (RO) = 0
- IsLayout (RO) = -1
- IsXRef (RO) = 0
- Layout (RO) = #<VLA-OBJECT IAcadLayout 0000027901c99d38>
- Name = "*Model_Space"
- ObjectID (RO) = 43
- ObjectName (RO) = "AcDbBlockTableRecord"
- Origin = (0.0 0.0 0.0)
- OwnerID (RO) = 48
- Path = AutoCAD.Application: Not applicable
- Units = 0
- XRefDatabase (RO) = AutoCAD.Application: No database
- Add3DFace (4)
- Add3DMesh (3)
- Add3DPoly (1)
- AddArc (4)
- AddAttribute (6)
- AddBox (4)
- AddCircle (2)
- AddCone (3)
- AddCustomObject (1)
- AddCylinder (3)
- AddDim3PointAngular (4)
- AddDimAligned (3)
- AddDimAngular (4)
- AddDimArc (4)
- AddDimDiametric (3)
- AddDimOrdinate (3)
- AddDimRadial (3)
- AddDimRadialLarge (5)
- AddDimRotated (4)
- AddEllipse (3)
- AddEllipticalCone (4)
- AddEllipticalCylinder (4)
- AddExtrudedSolid (3)
- AddExtrudedSolidAlongPath (2)
- AddHatch (4)
- AddLeader (3)
- AddLightWeightPolyline (1)
- AddLine (2)
- AddMInsertBlock (11)
- AddMLeader (2)
- AddMLine (1)
- AddMText (3)
- AddPoint (1)
- AddPolyfaceMesh (2)
- AddPolyline (1)
- AddRaster (4)
- AddRay (2)
- AddRegion (1)
- AddRevolvedSolid (4)
- AddSection (3)
- AddShape (4)
- AddSolid (4)
- AddSphere (2)
- AddSpline (3)
- AddTable (5)
- AddText (3)
- AddTolerance (3)
- AddTorus (3)
- AddTrace (1)
- AddWedge (4)
- AddXline (2)
- AttachExternalReference (9)
- Bind (1)
- Delete ()
- Detach ()
- GetExtensionDictionary ()
- GetXData (3)
- InsertBlock (7)
- Item (1)
- Reload ()
- SetXData (2)
- Unload ()
-
Entget
- ---
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff69aac51a8>
- BlockScaling = 0
- Comments = ""
- Count (RO) = 2
- Document (RO) = #<VLA-OBJECT IAcadDocument 00000278f0380478>
- Explodable = -1
- Handle (RO) = "1B"
- HasExtensionDictionary (RO) = 0
- IsDynamicBlock (RO) = 0
- IsLayout (RO) = -1
- IsXRef (RO) = 0
- Layout (RO) = #<VLA-OBJECT IAcadLayout 0000027901ad2598>
- Name = "*Paper_Space"
- ObjectID (RO) = 45
- ObjectName (RO) = "AcDbBlockTableRecord"
- Origin = (0.0 0.0 0.0)
- OwnerID (RO) = 48
- Path = AutoCAD.Application: Not applicable
- Units = 0
- XRefDatabase (RO) = AutoCAD.Application: No database
- Add3DFace (4)
- Add3DMesh (3)
- Add3DPoly (1)
- AddArc (4)
- AddAttribute (6)
- AddBox (4)
- AddCircle (2)
- AddCone (3)
- AddCustomObject (1)
- AddCylinder (3)
- AddDim3PointAngular (4)
- AddDimAligned (3)
- AddDimAngular (4)
- AddDimArc (4)
- AddDimDiametric (3)
- AddDimOrdinate (3)
- AddDimRadial (3)
- AddDimRadialLarge (5)
- AddDimRotated (4)
- AddEllipse (3)
- AddEllipticalCone (4)
- AddEllipticalCylinder (4)
- AddExtrudedSolid (3)
- AddExtrudedSolidAlongPath (2)
- AddHatch (4)
- AddLeader (3)
- AddLightWeightPolyline (1)
- AddLine (2)
- AddMInsertBlock (11)
- AddMLeader (2)
- AddMLine (1)
- AddMText (3)
- AddPoint (1)
- AddPolyfaceMesh (2)
- AddPolyline (1)
- AddPViewport (3)
- AddRaster (4)
- AddRay (2)
- AddRegion (1)
- AddRevolvedSolid (4)
- AddSection (3)
- AddShape (4)
- AddSolid (4)
- AddSphere (2)
- AddSpline (3)
- AddTable (5)
- AddText (3)
- AddTolerance (3)
- AddTorus (3)
- AddTrace (1)
- AddWedge (4)
- AddXline (2)
- AttachExternalReference (9)
- Bind (1)
- Delete ()
- Detach ()
- GetExtensionDictionary ()
- GetXData (3)
- InsertBlock (7)
- Item (1)
- Reload ()
- SetXData (2)
- Unload ()
-
Entget
- (-1 . <Entity name: 278e3b7fae0>)
- (0 . "3DFACE")
- (330 . <Entity name: 278f6bdb9f0>)
- (5 . "9A0E6")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "A-MODELAGEM")
- (100 . "AcDbFace")
- (10 555098.0 9.57123e+06 0.0)
- (11 555131.0 9.57127e+06 0.0)
- (12 555163.0 9.57123e+06 0.0)
- (13 555163.0 9.57123e+06 0.0)
- (70 . 0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff69aac51a8>
- Coordinate = ...Indexed contents not shown...
- Coordinates = (555098.0 9.57123e+06 0.0 555131.0 9.57127e+06 0.0 ... )
- Document (RO) = #<VLA-OBJECT IAcadDocument 00000278f0380478>
- EntityTransparency = "ByLayer"
- Handle (RO) = "9A0E6"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 00000278ff3b5b68>
- Layer = "A-MODELAGEM"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- ObjectID (RO) = 42
- ObjectName (RO) = "AcDbFace"
- OwnerID (RO) = 43
- PlotStyleName = "ByLayer"
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 00000278ff3c0c90>
- VisibilityEdge1 = -1
- VisibilityEdge2 = -1
- VisibilityEdge3 = -1
- VisibilityEdge4 = -1
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetInvisibleEdge (1)
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetInvisibleEdge (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c451941c40>)
- (0 . "POLYLINE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "999B4")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDb3dPolyline")
- (66 . 1)
- (10 0.0 0.0 0.0)
- (70 . 8)
- (40 . 0.0)
- (41 . 0.0)
- (210 0.0 0.0 1.0)
- (71 . 0)
- (72 . 0)
- (73 . 0)
- (74 . 0)
- (75 . 0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Closed = 0
- Coordinate = ...Indexed contents not shown...
- Coordinates = (555006.0 9.57032e+06 0.0 555047.0 9.57028e+06 0.0 ... )
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EntityTransparency = "ByLayer"
- Handle (RO) = "999B4"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44f4b6938>
- Layer = "0"
- Length (RO) = 148.114
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- ObjectID (RO) = 89
- ObjectName (RO) = "AcDb3dPolyline"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c44f483ea0>
- Type = 0
- Visible = -1
- AppendVertex (1)
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- Explode ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efeaa0>)
- (0 . "ARC")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99922")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbCircle")
- (10 554885.0 9.57033e+06 0.0)
- (40 . 8.09924)
- (210 0.0 0.0 1.0)
- (100 . "AcDbArc")
- (50 . 1.22704)
- (51 . 2.7716)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- ArcLength (RO) = 12.5097
- Area (RO) = 17.8722
- Center = (554885.0 9.57033e+06 0.0)
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EndAngle = 2.7716
- EndPoint (RO) = (554877.0 9.57034e+06 0.0)
- EntityTransparency = "ByLayer"
- Handle (RO) = "99922"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c435b2d338>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 81
- ObjectName (RO) = "AcDbArc"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- Radius = 8.09924
- StartAngle = 1.22704
- StartPoint (RO) = (554887.0 9.57034e+06 0.0)
- Thickness = 0.0
- TotalAngle (RO) = 1.54456
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c435c1fa40>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Offset (1)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467c6d310>)
- (0 . "ATTRIB")
- (330 . <Entity name: 1c467c6d280>)
- (5 . "99BF9")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "_Pdr_Carrimbo_03")
- (62 . 7)
- (100 . "AcDbText")
- (10 555160.0 9.57003e+06 0.0)
- (40 . 2.0)
- (1 . "RUAS DO ANCURI - PROJETO DE DRENAGEM")
- (50 . 0.0)
- (41 . 1.0)
- (51 . 0.0)
- (7 . "ARIAL")
- (71 . 0)
- (72 . 0)
- (11 0.0 0.0 0.0)
- (210 0.0 0.0 1.0)
- (100 . "AcDbAttribute")
- (280 . 0)
- (2 . "NOME_PROJETO")
- (70 . 0)
- (73 . 0)
- (74 . 0)
- (280 . 1)
- Alignment = 0
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Backward = 0
- Constant (RO) = 0
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EntityTransparency = "ByLayer"
- FieldLength = 0
- Handle (RO) = "99BF9"
- HasExtensionDictionary (RO) = 0
- Height = 2.0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c46cce1ff8>
- InsertionPoint = (555160.0 9.57003e+06 0.0)
- Invisible = 0
- Layer = "_Pdr_Carrimbo_03"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- LockPosition (RO) = -1
- Material = "ByLayer"
- MTextAttribute = 0
- MTextAttributeContent = ""
- MTextBoundaryWidth = 0.0
- MTextDrawingDirection = 5
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 91
- ObjectName (RO) = "AcDbAttribute"
- ObliqueAngle = 0.0
- OwnerID (RO) = 92
- PlotStyleName = "Color_7"
- Rotation = 0.0
- ScaleFactor = 1.0
- StyleName = "ARIAL"
- TagString = "NOME_PROJETO"
- TextAlignmentPoint = (0.0 0.0 0.0)
- TextGenerationFlag = 0
- TextString = "RUAS DO ANCURI - PROJETO DE DRENAGEM"
- Thickness = 0.0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c46ccb6280>
- UpsideDown = 0
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
- UpdateMTextAttribute ()
-
Entget
- (-1 . <Entity name: 1c451941cb0>)
- (0 . "INSERT")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "999BB")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbBlockReference")
- (2 . "DRE-BL1")
- (10 554957.0 9.57038e+06 0.0)
- (41 . 1.0)
- (42 . 1.0)
- (43 . 1.0)
- (50 . 2.58892)
- (70 . 0)
- (71 . 0)
- (44 . 0.0)
- (45 . 0.0)
- (210 0.0 0.0 1.0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EffectiveName (RO) = "DRE-BL1"
- EntityTransparency = "ByLayer"
- Handle (RO) = "999BB"
- HasAttributes (RO) = 0
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c46b5a13f8>
- InsertionPoint = (554957.0 9.57038e+06 0.0)
- InsUnits (RO) = "Meters"
- InsUnitsFactor (RO) = 1.0
- IsDynamicBlock (RO) = 0
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Name = "DRE-BL1"
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 90
- ObjectName (RO) = "AcDbBlockReference"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- Rotation = 2.58892
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c46b5b4b00>
- Visible = -1
- XEffectiveScaleFactor = 1.0
- XScaleFactor = 1.0
- YEffectiveScaleFactor = 1.0
- YScaleFactor = 1.0
- ZEffectiveScaleFactor = 1.0
- ZScaleFactor = 1.0
- ArrayPolar (3)
- ArrayRectangular (6)
- ConvertToAnonymousBlock ()
- ConvertToStaticBlock (1)
- Copy ()
- Delete ()
- Explode ()
- GetAttributes ()
- GetBoundingBox (2)
- GetConstantAttributes ()
- GetDynamicBlockProperties ()
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- ResetBlock ()
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efea90>)
- (0 . "CIRCLE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99921")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbCircle")
- (10 554871.0 9.57033e+06 0.0)
- (40 . 3.20718)
- (210 0.0 0.0 1.0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Area = 32.3145
- Center = (554871.0 9.57033e+06 0.0)
- Circumference = 20.1513
- Diameter = 6.41437
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EntityTransparency = "ByLayer"
- Handle (RO) = "99921"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c4380c5848>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 80
- ObjectName (RO) = "AcDbCircle"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- Radius = 3.20718
- Thickness = 0.0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c4380b4260>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Offset (1)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efebf0>)
- (0 . "DIMENSION")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99937")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbDimension")
- (280 . 0)
- (2 . "*D361")
- (10 554898.0 9.57018e+06 0.0)
- (11 554883.0 9.57017e+06 0.0)
- (12 0.0 0.0 0.0)
- (70 . 33)
- (1 . "")
- (71 . 5)
- (72 . 1)
- (41 . 1.0)
- (42 . 40.4165)
- (73 . 0)
- (74 . 0)
- (75 . 0)
- (52 . 0.0)
- (53 . 0.0)
- (54 . 0.0)
- (51 . 0.0)
- (210 0.0 0.0 1.0)
- (3 . "ISO-25")
- (100 . "AcDbAlignedDimension")
- (13 554865.0 9.57016e+06 0.0)
- (14 554891.0 9.57019e+06 0.0)
- (15 0.0 0.0 0.0)
- (16 0.0 0.0 0.0)
- (40 . 0.0)
- (50 . 0.0)
- AltRoundDistance = 0.0
- AltSubUnitsFactor = 100.0
- AltSubUnitsSuffix = ""
- AltSuppressLeadingZeros = 0
- AltSuppressTrailingZeros = 0
- AltSuppressZeroFeet = -1
- AltSuppressZeroInches = -1
- AltTextPrefix = ""
- AltTextSuffix = ""
- AltTolerancePrecision = 3
- AltToleranceSuppressLeadingZeros = 0
- AltToleranceSuppressTrailingZeros = 0
- AltToleranceSuppressZeroFeet = -1
- AltToleranceSuppressZeroInches = -1
- AltUnits = 0
- AltUnitsFormat = 2
- AltUnitsPrecision = 3
- AltUnitsScale = 0.0393701
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Arrowhead1Block = ""
- Arrowhead1Type = 0
- Arrowhead2Block = ""
- Arrowhead2Type = 0
- ArrowheadSize = 2.5
- DecimalSeparator = ","
- DimConstrDesc = Exceção
- DimConstrExpression = Exceção
- DimConstrForm = 0
- DimConstrName = Exceção
- DimConstrReference = 0
- DimConstrValue = Exceção
- DimensionLineColor = 0
- DimensionLineExtend = 0.0
- DimensionLinetype = "ByBlock"
- DimensionLineWeight = -2
- DimLine1Suppress = 0
- DimLine2Suppress = 0
- DimLineInside = 0
- DimTxtDirection = 0
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EntityTransparency = "ByLayer"
- ExtensionLineColor = 0
- ExtensionLineExtend = 1.25
- ExtensionLineOffset = 0.625
- ExtensionLineWeight = -2
- ExtLine1Linetype = "ByBlock"
- ExtLine1Point = (554865.0 9.57016e+06 0.0)
- ExtLine1Suppress = 0
- ExtLine2Linetype = "ByBlock"
- ExtLine2Point = (554891.0 9.57019e+06 0.0)
- ExtLine2Suppress = 0
- ExtLineFixedLen = 1.0
- ExtLineFixedLenSuppress = 0
- Fit = 3
- ForceLineInside = -1
- FractionFormat = 0
- Handle (RO) = "99937"
- HasExtensionDictionary (RO) = 0
- HorizontalTextPosition = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c429b8ee88>
- Layer = "0"
- LinearScaleFactor = 1.0
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Measurement (RO) = 40.4165
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 86
- ObjectName (RO) = "AcDbAlignedDimension"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- PrimaryUnitsPrecision = 2
- Rotation = 0.0
- RoundDistance = 0.0
- ScaleFactor = 1.0
- StyleName = "ISO-25"
- SubUnitsFactor = 100.0
- SubUnitsSuffix = ""
- SuppressLeadingZeros = 0
- SuppressTrailingZeros = -1
- SuppressZeroFeet = -1
- SuppressZeroInches = -1
- TextColor = 0
- TextFill = 0
- TextFillColor = 0
- TextGap = 0.625
- TextHeight = 2.5
- TextInside = 0
- TextInsideAlign = 0
- TextMovement = 0
- TextOutsideAlign = 0
- TextOverride = ""
- TextPosition = (554883.0 9.57017e+06 0.0)
- TextPrefix = ""
- TextRotation = 0.0
- TextStyle = "Standard"
- TextSuffix = ""
- ToleranceDisplay = 0
- ToleranceHeightScale = 1.0
- ToleranceJustification = 0
- ToleranceLowerLimit = 0.0
- TolerancePrecision = 2
- ToleranceSuppressLeadingZeros = 0
- ToleranceSuppressTrailingZeros = -1
- ToleranceSuppressZeroFeet = -1
- ToleranceSuppressZeroInches = -1
- ToleranceUpperLimit = 0.0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c438d71b20>
- UnitsFormat = 2
- VerticalTextPosition = 1
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c451941ab0>)
- (0 . "HATCH")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "9999B")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbHatch")
- (10 0.0 0.0 0.0)
- (210 0.0 0.0 1.0)
- (2 . "ANSI31")
- (70 . 0)
- (71 . 1)
- (91 . 1)
- (92 . 5)
- (93 . 1)
- (72 . 3)
- (10 554858.0 9.56992e+06 0.0)
- (11 33.852 -19.8621 0.0)
- (40 . 0.379625)
- (50 . 0.0)
- (51 . 6.28319)
- (73 . 1)
- (97 . 1)
- (330 . <Entity name: 1c451941ac0>)
- (75 . 1)
- (76 . 1)
- (52 . 0.0)
- (41 . 1.0)
- (77 . 0)
- (78 . 1)
- (53 . 0.785398)
- (43 . 554750.0)
- (44 . 9.56972e+06)
- (45 . -2.24506)
- (46 . 2.24506)
- (79 . 0)
- (47 . 0.310345)
- (98 . 1)
- (10 554877.0 9.56991e+06 0.0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Area (RO) = 1837.19
- AssociativeHatch = -1
- BackgroundColor = #<VLA-OBJECT IAcadAcCmColor 000001c429b88280>
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- Elevation = 0.0
- EntityTransparency = "ByLayer"
- GradientAngle = 0.0
- GradientCentered = -1
- GradientColor1 = #<VLA-OBJECT IAcadAcCmColor 000001c429b8c210>
- GradientColor2 = #<VLA-OBJECT IAcadAcCmColor 000001c429b8c330>
- GradientName = "LINEAR"
- Handle (RO) = "9999B"
- HasExtensionDictionary (RO) = 0
- HatchObjectType = 0
- HatchStyle = 1
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c435528f68>
- ISOPenWidth = 100
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal = (0.0 0.0 1.0)
- NumberOfLoops (RO) = 1
- ObjectID (RO) = 87
- ObjectName (RO) = "AcDbHatch"
- Origin = (0.0 0.0)
- OwnerID (RO) = 45
- PatternAngle = 0.0
- PatternDouble = 0
- PatternName (RO) = "ANSI31"
- PatternScale = 1.0
- PatternSpace = 1.0
- PatternType (RO) = 1
- PlotStyleName = "ByLayer"
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c435555810>
- Visible = -1
- AppendInnerLoop (1)
- AppendOuterLoop (1)
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- Evaluate ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetLoopAt (2)
- GetXData (3)
- Highlight (1)
- InsertLoopAt (3)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetPattern (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467c6d530>)
- (0 . "LEADER")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99C1B")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbLeader")
- (3 . "ISO-25")
- (71 . 1)
- (72 . 0)
- (73 . 0)
- (74 . 1)
- (75 . 1)
- (40 . 2.5)
- (41 . 2.5)
- (76 . 3)
- (10 555035.0 9.5702e+06 0.0)
- (10 555025.0 9.57015e+06 0.0)
- (10 555023.0 9.57015e+06 0.0)
- (340 . <Entity name: 1c467c6d540>)
- (211 1.0 0.0 0.0)
- (210 0.0 0.0 1.0)
- (212 0.0 0.0 0.0)
- (213 0.0 0.0 0.0)
- Annotation = #<VLA-OBJECT IAcadMText 000001c453921d08>
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- ArrowheadBlock = ""
- ArrowheadSize = 2.5
- ArrowheadType = 0
- Coordinate = ...Indexed contents not shown...
- Coordinates = (555035.0 9.5702e+06 0.0 555023.0 9.57015e+06 0.0)
- DimensionLineColor = 0
- DimensionLineWeight = -2
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EntityTransparency = "ByLayer"
- Handle (RO) = "99C1B"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c4494bb218>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal (RO) = (0.0 0.0 1.0)
- ObjectID (RO) = 95
- ObjectName (RO) = "AcDbLeader"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- ScaleFactor = 1.0
- StyleName = "ISO-25"
- TextGap = 0.625
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c4494cf580>
- Type = 2
- VerticalTextPosition = 1
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- Evaluate ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efea60>)
- (0 . "LINE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "9991E")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbLine")
- (10 554845.0 9.57032e+06 0.0)
- (11 554855.0 9.57034e+06 0.0)
- (210 0.0 0.0 1.0)
- Angle (RO) = 1.05136
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Delta (RO) = (10.1771 17.7981 0.0)
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EndPoint = (554855.0 9.57034e+06 0.0)
- EntityTransparency = "ByLayer"
- Handle (RO) = "9991E"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c4380b4ad8>
- Layer = "0"
- Length (RO) = 20.5023
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 78
- ObjectName (RO) = "AcDbLine"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- StartPoint = (554845.0 9.57032e+06 0.0)
- Thickness = 0.0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c4380bf420>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Offset (1)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efeb10>)
- (0 . "MTEXT")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "99929")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbMText")
- (10 554845.0 9.57034e+06 0.0)
- (40 . 45.519)
- (41 . 17.0667)
- (46 . 0.0)
- (71 . 1)
- (72 . 5)
- (1 . "123")
- (7 . "ARIAL")
- (210 0.0 0.0 1.0)
- (11 1.0 0.0 0.0)
- (42 . 96.2854)
- (43 . 46.5126)
- (50 . 0.0)
- (73 . 1)
- (44 . 1.0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- AttachmentPoint = 1
- BackgroundFill = 0
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- DrawingDirection = 5
- EntityTransparency = "ByLayer"
- Handle (RO) = "99929"
- HasExtensionDictionary (RO) = 0
- Height = 45.519
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c46c8606c8>
- InsertionPoint = (554845.0 9.57034e+06 0.0)
- Layer = "0"
- LineSpacingDistance = 75.865
- LineSpacingFactor = 1.0
- LineSpacingStyle = 1
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 84
- ObjectName (RO) = "AcDbMText"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- Rotation = 0.0
- StyleName = "ARIAL"
- TextString = "123"
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c46c8620a0>
- Visible = -1
- Width = 17.0667
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- FieldCode ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efea70>)
- (0 . "LWPOLYLINE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "9991F")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbPolyline")
- (90 . 2)
- (70 . 0)
- (43 . 0.0)
- (38 . 0.0)
- (39 . 0.0)
- (10 554856.0 9.57033e+06)
- (40 . 0.0)
- (41 . 0.0)
- (42 . 0.0)
- (91 . 0)
- (10 554872.0 9.57034e+06)
- (40 . 0.0)
- (41 . 0.0)
- (42 . 0.0)
- (91 . 0)
- (210 0.0 0.0 1.0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Area (RO) = 0.0
- Closed = 0
- ConstantWidth = 0.0
- Coordinate = ...Indexed contents not shown...
- Coordinates = (554856.0 9.57033e+06 554872.0 9.57034e+06)
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- Elevation = 0.0
- EntityTransparency = "ByLayer"
- Handle (RO) = "9991F"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c4205ea948>
- Layer = "0"
- Length (RO) = 22.2653
- Linetype = "ByLayer"
- LinetypeGeneration = 0
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 79
- ObjectName (RO) = "AcDbPolyline"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- Thickness = 0.0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c420603b70>
- Visible = -1
- AddVertex (2)
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- Explode ()
- GetBoundingBox (2)
- GetBulge (1)
- GetExtensionDictionary ()
- GetWidth (3)
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Offset (1)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetBulge (2)
- SetWidth (3)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c467efea50>)
- (0 . "POINT")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "9991D")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbPoint")
- (10 556326.0 9.57255e+06 0.0)
- (210 0.0 0.0 1.0)
- (50 . 0.0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Coordinates = (556326.0 9.57255e+06 0.0)
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EntityTransparency = "ByLayer"
- Handle (RO) = "9991D"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c468901018>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 77
- ObjectName (RO) = "AcDbPoint"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- Thickness = 0.0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c4688d8b70>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 278e3b7fc80>)
- (0 . "ACAD_TABLE")
- (330 . <Entity name: 278f6bdb9f0>)
- (5 . "9A100")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbBlockReference")
- (2 . "*T293")
- (10 555076.0 9.57122e+06 0.0)
- (41 . 1.0)
- (42 . 1.0)
- (43 . 1.0)
- (50 . 0.0)
- (70 . 0)
- (71 . 0)
- (44 . 0.0)
- (45 . 0.0)
- (210 0.0 0.0 1.0)
- (100 . "AcDbTable")
- (280 . 0)
- (342 . <Entity name: 278f6bdbca0>)
- (343 . <Entity name: 278e3b7fc90>)
- (11 1.0 0.0 0.0)
- (90 . 22)
- (91 . 3)
- (92 . 3)
- (93 . 0)
- (94 . 0)
- (95 . 0)
- (96 . 0)
- (141 . 11.0)
- (141 . 9.0)
- (141 . 9.0)
- (142 . 63.5)
- (142 . 63.5)
- (142 . 63.5)
- (171 . 1)
- (172 . 0)
- (173 . 0)
- (174 . 0)
- (175 . 3)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 6)
- (90 . 4)
- (1 . "Tabela de coordenadas")
- (94 . 0)
- (300 . "")
- (302 . "Tabela de coordenadas")
- (304 . "ACVALUE_END")
- (171 . 1)
- (172 . 0)
- (173 . 1)
- (174 . 0)
- (175 . 1)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 3)
- (90 . 0)
- (94 . 0)
- (300 . "")
- (302 . "")
- (304 . "ACVALUE_END")
- (171 . 1)
- (172 . 0)
- (173 . 1)
- (174 . 0)
- (175 . 1)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 3)
- (90 . 0)
- (94 . 0)
- (300 . "")
- (302 . "")
- (304 . "ACVALUE_END")
- (171 . 1)
- (172 . 0)
- (173 . 0)
- (174 . 0)
- (175 . 1)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 6)
- (90 . 4)
- (1 . "ponto")
- (94 . 0)
- (300 . "")
- (302 . "ponto")
- (304 . "ACVALUE_END")
- (171 . 1)
- (172 . 0)
- (173 . 0)
- (174 . 0)
- (175 . 1)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 6)
- (90 . 4)
- (1 . "p1")
- (94 . 0)
- (300 . "")
- (302 . "p1")
- (304 . "ACVALUE_END")
- (171 . 1)
- (172 . 0)
- (173 . 0)
- (174 . 0)
- (175 . 1)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 6)
- (90 . 4)
- (1 . "p2")
- (94 . 0)
- (300 . "")
- (302 . "p2")
- (304 . "ACVALUE_END")
- (171 . 1)
- (172 . 0)
- (173 . 0)
- (174 . 0)
- (175 . 1)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 6)
- (90 . 4)
- (1 . "coordenadas")
- (94 . 0)
- (300 . "")
- (302 . "coordenadas")
- (304 . "ACVALUE_END")
- (171 . 1)
- (172 . 0)
- (173 . 0)
- (174 . 0)
- (175 . 1)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 6)
- (90 . 4)
- (1 . "x,y")
- (94 . 0)
- (300 . "")
- (302 . "x,y")
- (304 . "ACVALUE_END")
- (171 . 1)
- (172 . 0)
- (173 . 0)
- (174 . 0)
- (175 . 1)
- (176 . 1)
- (91 . 0)
- (178 . 0)
- (145 . 0.0)
- (92 . 0)
- (301 . "CELL_VALUE")
- (93 . 6)
- (90 . 4)
- (1 . "a,b")
- (94 . 0)
- (300 . "")
- (302 . "a,b")
- (304 . "ACVALUE_END")
- AllowManualHeights = 0
- AllowManualPositions = 0
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff69aac51a8>
- BreaksEnabled = 0
- BreakSpacing = 24.75
- Columns = 3
- ColumnWidth (RO) = ...Indexed contents not shown...
- Direction = (1.0 0.0 0.0)
- Document (RO) = #<VLA-OBJECT IAcadDocument 00000278f0380478>
- EnableBreak (RO) = ...Indexed contents not shown...
- EntityTransparency = "ByLayer"
- FlowDirection = 0
- Handle (RO) = "9A100"
- HasExtensionDictionary (RO) = 0
- HasSubSelection (RO) = 0
- HeaderSuppressed = 0
- Height = 29.0
- HorzCellMargin = 0.06
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000002790041cb18>
- InsertionPoint = (555076.0 9.57122e+06 0.0)
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- MinimumTableHeight (RO) = 29.0
- MinimumTableWidth (RO) = 27.0
- ObjectID (RO) = 46
- ObjectName (RO) = "AcDbTable"
- OwnerID (RO) = 43
- PlotStyleName = "ByLayer"
- RegenerateTableSuppressed = 0
- RepeatBottomLabels = 0
- RepeatTopLabels = 0
- RowHeight (RO) = ...Indexed contents not shown...
- Rows = 3
- StyleName = "Standard"
- TableBreakFlowDirection = 1
- TableBreakHeight = 0.0
- TableStyleOverrides (RO) = nil
- TitleSuppressed = 0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 00000279004393d0>
- VertCellMargin = 0.06
- Visible = -1
- Width = 190.5
- ArrayPolar (3)
- ArrayRectangular (6)
- ClearSubSelection ()
- ClearTableStyleOverrides (1)
- Copy ()
- CreateContent (3)
- Delete ()
- DeleteCellContent (2)
- DeleteColumns (2)
- DeleteContent (2)
- DeleteRows (2)
- EnableMergeAll (3)
- FormatValue (4)
- GenerateLayout ()
- GetAlignment (1)
- GetAttachmentPoint (2)
- GetAutoScale (2)
- GetAutoScale2 (3)
- GetBackgroundColor (1)
- GetBackgroundColorNone (1)
- GetBlockAttributeValue (3)
- GetBlockAttributeValue2 (4)
- GetBlockRotation (2)
- GetBlockScale (2)
- GetBlockTableRecordId (2)
- GetBlockTableRecordId2 (3)
- GetBoundingBox (2)
- GetBreakHeight (1)
- GetCellAlignment (2)
- GetCellBackgroundColor (2)
- GetCellBackgroundColorNone (2)
- GetCellContentColor (2)
- GetCellDataType (4)
- GetCellExtents (3)
- GetCellFormat (2)
- GetCellGridColor (3)
- GetCellGridLineWeight (3)
- GetCellGridVisibility (3)
- GetCellState (2)
- GetCellStyle (2)
- GetCellStyleOverrides (2)
- GetCellTextHeight (2)
- GetCellTextStyle (2)
- GetCellType (2)
- GetCellValue (2)
- GetColumnName (1)
- GetColumnWidth (1)
- GetContentColor (1)
- GetContentColor2 (3)
- GetContentLayout (2)
- GetContentType (2)
- GetCustomData (4)
- GetDataFormat (3)
- GetDataType (3)
- GetDataType2 (5)
- GetExtensionDictionary ()
- GetFieldId (2)
- GetFieldId2 (3)
- GetFormat (1)
- GetFormula (3)
- GetGridColor (2)
- GetGridColor2 (3)
- GetGridDoubleLineSpacing (3)
- GetGridLineStyle (3)
- GetGridLinetype (3)
- GetGridLineWeight (2)
- GetGridLineWeight2 (3)
- GetGridVisibility (2)
- GetGridVisibility2 (3)
- GetHasFormula (3)
- GetMargin (3)
- GetMinimumColumnWidth (1)
- GetMinimumRowHeight (1)
- GetOverride (3)
- GetRotation (3)
- GetRowHeight (1)
- GetRowType (1)
- GetScale (3)
- GetSubSelection (4)
- GetText (2)
- GetTextHeight (1)
- GetTextHeight2 (3)
- GetTextRotation (2)
- GetTextString (3)
- GetTextStyle (1)
- GetTextStyle2 (3)
- GetValue (3)
- GetXData (3)
- Highlight (1)
- HitTest (4)
- InsertColumns (3)
- InsertColumnsAndInherit (3)
- InsertRows (3)
- InsertRowsAndInherit (3)
- IntersectWith (2)
- IsContentEditable (2)
- IsEmpty (2)
- IsFormatEditable (2)
- IsMergeAllEnabled (2)
- IsMergedCell (6)
- MergeCells (4)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- MoveContent (4)
- RecomputeTableBlock (1)
- RemoveAllOverrides (2)
- ReselectSubRegion ()
- ResetCellValue (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- Select (8)
- SelectSubRegion (10)
- SetAlignment (2)
- SetAutoScale (3)
- SetAutoScale2 (4)
- SetBackgroundColor (2)
- SetBackgroundColorNone (2)
- SetBlockAttributeValue (4)
- SetBlockAttributeValue2 (5)
- SetBlockRotation (3)
- SetBlockScale (3)
- SetBlockTableRecordId (4)
- SetBlockTableRecordId2 (5)
- SetBreakHeight (2)
- SetCellAlignment (3)
- SetCellBackgroundColor (3)
- SetCellBackgroundColorNone (3)
- SetCellContentColor (3)
- SetCellDataType (4)
- SetCellFormat (3)
- SetCellGridColor (4)
- SetCellGridLineWeight (4)
- SetCellGridVisibility (4)
- SetCellState (3)
- SetCellStyle (3)
- SetCellTextHeight (3)
- SetCellTextStyle (3)
- SetCellType (3)
- SetCellValue (3)
- SetCellValueFromText (4)
- SetColumnName (2)
- SetColumnWidth (2)
- SetContentColor (2)
- SetContentColor2 (4)
- SetContentLayout (3)
- SetCustomData (4)
- SetDataFormat (4)
- SetDataType (3)
- SetDataType2 (5)
- SetFieldId (3)
- SetFieldId2 (5)
- SetFormat (2)
- SetFormula (4)
- SetGridColor (3)
- SetGridColor2 (4)
- SetGridDoubleLineSpacing (4)
- SetGridLineStyle (4)
- SetGridLinetype (4)
- SetGridLineWeight (3)
- SetGridLineWeight2 (4)
- SetGridVisibility (3)
- SetGridVisibility2 (4)
- SetMargin (4)
- SetOverride (4)
- SetRotation (4)
- SetRowHeight (2)
- SetScale (4)
- SetSubSelection (4)
- SetText (3)
- SetTextHeight (2)
- SetTextHeight2 (4)
- SetTextRotation (3)
- SetTextString (4)
- SetTextStyle (2)
- SetTextStyle2 (4)
- SetToolTip (3)
- SetValue (4)
- SetValueFromText (5)
- SetXData (2)
- TransformBy (1)
- UnmergeCells (4)
- Update ()
-
Entget
- (-1 . <Entity name: 1c41ca4e2f0>)
- (0 . "TEXT")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "97D5F")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "_DRE_Área contribuição")
- (62 . 2)
- (100 . "AcDbText")
- (10 554821.0 9.57033e+06 0.0)
- (40 . 8.0)
- (1 . "78")
- (50 . 0.0)
- (41 . 1.0)
- (51 . 0.0)
- (7 . "arcad1")
- (71 . 0)
- (72 . 1)
- (11 554828.0 9.57034e+06 0.0)
- (210 0.0 0.0 1.0)
- (100 . "AcDbText")
- (73 . 2)
- Alignment = 10
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- Backward = 0
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EntityTransparency = "ByLayer"
- Handle (RO) = "97D5F"
- HasExtensionDictionary (RO) = 0
- Height = 8.0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c435b36698>
- InsertionPoint = (554821.0 9.57033e+06 0.0)
- Layer = "_DRE_Área contribuição"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- Normal = (0.0 0.0 1.0)
- ObjectID (RO) = 83
- ObjectName (RO) = "AcDbText"
- ObliqueAngle = 0.0
- OwnerID (RO) = 45
- PlotStyleName = "Color_2"
- Rotation = 0.0
- ScaleFactor = 1.0
- StyleName = "arcad1"
- TextAlignmentPoint = (554828.0 9.57034e+06 0.0)
- TextGenerationFlag = 0
- TextString = "78"
- Thickness = 0.0
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c46c860000>
- UpsideDown = 0
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- FieldCode ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 278f6b84760>)
- (0 . "VIEWPORT")
- (5 . "9751E")
- (102 . "{ACAD_XDICTIONARY")
- (360 . <Entity name: 278f6b84770>)
- (102 . "}")
- (330 . <Entity name: 278f6bdb9b0>)
- (100 . "AcDbEntity")
- (67 . 1)
- (410 . "Layout1")
- (8 . "0")
- (100 . "AcDbViewport")
- (10 128.5 97.5 0.0)
- (40 . 205.6)
- (41 . 156.0)
- (68 . 2)
- (69 . 2)
- (12 556660.0 9.57075e+06 0.0)
- (13 0.0 0.0 0.0)
- (14 10.0 10.0 0.0)
- (15 10.0 10.0 0.0)
- (16 0.0 0.0 1.0)
- (17 0.0 0.0 0.0)
- (42 . 50.0)
- (43 . 0.0)
- (44 . 0.0)
- (45 . 4738.1)
- (50 . 0.0)
- (51 . 0.0)
- (72 . 100)
- (90 . 819296)
- (281 . 0)
- (71 . 1)
- (74 . 0)
- (110 0.0 0.0 0.0)
- (111 1.0 0.0 0.0)
- (112 0.0 1.0 0.0)
- (79 . 0)
- (146 . 0.0)
- (170 . 0)
- (61 . 5)
- (348 . <Entity name: 278f6bdbaf0>)
- (292 . 1)
- (282 . 1)
- (141 . 0.0)
- (142 . 0.0)
- (63 . 250)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff69aac51a8>
- ArcSmoothness = 100
- Center = (128.5 97.5 0.0)
- Clipped (RO) = 0
- CustomScale = 0.0329246
- Direction = (0.0 0.0 1.0)
- DisplayLocked = 0
- Document (RO) = #<VLA-OBJECT IAcadDocument 00000278f0380478>
- EntityTransparency = "ByLayer"
- GridOn = 0
- Handle (RO) = "9751E"
- HasExtensionDictionary (RO) = -1
- HasSheetView (RO) = 0
- Height = 156.0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 00000279010c4c78>
- LabelBlockId = 0
- Layer = "0"
- LayerPropertyOverrides (RO) = 0
- LensLength = 50.0
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- ModelView = nil
- ObjectID (RO) = 44
- ObjectName (RO) = "AcDbViewport"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- ShadePlot = 0
- SheetView = nil
- SnapBasePoint = (0.0 0.0)
- SnapOn = 0
- SnapRotationAngle = 0.0
- StandardScale = 1
- StandardScale2 = 1
- Target = (0.0 0.0 0.0)
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 00000279010dbe00>
- TwistAngle = 0.0
- UCSIconAtOrigin = -1
- UCSIconOn = -1
- UCSPerViewport = -1
- ViewportOn = -1
- Visible = -1
- VisualStyle = 1
- Width = 205.6
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- Display (1)
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetGridSpacing (2)
- GetSnapSpacing (2)
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetGridSpacing (2)
- SetSnapSpacing (2)
- SetXData (2)
- SyncModelView ()
- TransformBy (1)
- Update ()
-
Entget
- (-1 . <Entity name: 1c451941c30>)
- (0 . "XLINE")
- (330 . <Entity name: 1c418df79f0>)
- (5 . "999B3")
- (100 . "AcDbEntity")
- (67 . 0)
- (410 . "Model")
- (8 . "0")
- (100 . "AcDbXline")
- (10 554887.0 9.56993e+06 0.0)
- (11 0.731463 0.681881 0.0)
- Application (RO) = #<VLA-OBJECT IAcadApplication 00007ff7e1d851a8>
- BasePoint = (554887.0 9.56993e+06 0.0)
- DirectionVector = (0.731463 0.681881 0.0)
- Document (RO) = #<VLA-OBJECT IAcadDocument 000001c4193517b8>
- EntityTransparency = "ByLayer"
- Handle (RO) = "999B3"
- HasExtensionDictionary (RO) = 0
- Hyperlinks (RO) = #<VLA-OBJECT IAcadHyperlinks 000001c44bc7cce8>
- Layer = "0"
- Linetype = "ByLayer"
- LinetypeScale = 1.0
- Lineweight = -1
- Material = "ByLayer"
- ObjectID (RO) = 88
- ObjectName (RO) = "AcDbXline"
- OwnerID (RO) = 45
- PlotStyleName = "ByLayer"
- SecondPoint = (554888.0 9.56993e+06 0.0)
- TrueColor = #<VLA-OBJECT IAcadAcCmColor 000001c44bc8fee0>
- Visible = -1
- ArrayPolar (3)
- ArrayRectangular (6)
- Copy ()
- Delete ()
- GetBoundingBox (2)
- GetExtensionDictionary ()
- GetXData (3)
- Highlight (1)
- IntersectWith (2)
- Mirror (2)
- Mirror3D (3)
- Move (2)
- Offset (1)
- Rotate (2)
- Rotate3D (3)
- ScaleEntity (2)
- SetXData (2)
- TransformBy (1)
- Update ()
Resumo de usos Lisp
VLAX-ENAME->VLA-OBJECT
Converter uma lista de propriedades da entidades para um objeto compatível com os comandos de VISUAL LISP
Entidade deixa de ser uma lista e passa a ser um objeto com propriedades que podem ser acessadas
(setq entobj (entsel "\nSelecione a entidade: "))
(setq vl-obj (vlax-ename->vla-object (car entobj)))
para converter de volta para ename
-
(vlax-vla-object->ename vla-object)
VLA-GET-<propriedade> / VLA-PUT-<propriedade>
GET -> Pegar o valor de uma propriedade de um objeto visual lisp
PUT -> Alterar o valor de uma propriedade de um objeto visual lisp
Sempre retornará nil no inspect quando conseguir realizar a alteração com sucesso
(setq entobj (entsel "\nSelecione a entidade: "))
(setq vl-obj (vlax-ename->vla-object (car entobj)))
(vla-get-length vl-obj) ;pegar valor da propriedade length (comprimento)
(vla-put-layer vl-obj "NovaLayer") ;alterar valor da propriedade layer
(vla-put-elevation vl-obj (/ elev 1) ;resolver problema ao inserir um valor string que é real ou integer
VLAX-INVOKE-METHOD
Chamar um método da entidade (melhor para civil 3d)
(setq sv (car (entsel "\nSelecione uma section view:")))
(setq svla (vlax-ename->vla-object sv))
(setq sl (vlax-get-property section-vla "Parent")) ;pegar sampleline
(setq slg (vlax-get-property sl "Parent")) ;pegar sample line group
(setq alg (vlax-get-property slg "Parent")) ;pegar alingment
(vlax-invoke-method section-vla 'FindStationOffsetAndElevationAtXY ponto-x ponto-y 'sta 'off 'elev)
;(vlax-invoke-method SectionView 'FindStationOffsetAndElevationAtXY x y 'sta 'off 'elev)
(vlax-invoke-method alg 'PointLocation sta off 'sta-x 'sta-y)
;(vlax-invoke-method alignment 'PointLocation station offset 'x 'y)
VLA-METHOD
Chamar um método da entidade (melhor para autocad)
(setq thisdrawing (vla-get-activedocument (vlax-get-acad-object)))
(setq mspace (vla-get-modelspace thisdrawing))
(vla-AddPoint mspace (vlax-3d-point sta-x sta-y elev))
;(vla-AddPoint mspace (x y z))
VLAX-GET-ACAD-OBJECT
Pegar objeto visual lisp
(SETQ ACADOBJ (VLAX-GET-ACAD-OBJECT))
TBLSEARCH
Retorna a lista de propriedades da entidade não gráfica procurada
Informar o tipo da entidade através do Symbol Table Name
Informar o nome da entidade especifica, no caso abaixo o nome do estilo de texto
(tblsearch "style" "Standard")
TBLOBJNAME
Retorna apenas o nome da da entidade não gráfica procurada
Informar o tipo da entidade através do Symbol Table Name
Informar o nome da entidade especifica, no caso abaixo o nome do estilo de texto
(tblobjname "style" "Standard")
VLISP
Converter em objeto visual lisp
Utilizar os comandos de alteração das propriedades
(setq entobj (tblsearch "style" "Standard"))
(setq vl-obj (vlax-ename->vla-object entobj)) ;
(vla-put-height vl-obj 0.10) ;alterar valor da propriedade
